Authentication

Every API request is authenticated with a bearer token in the Authorization header:

curl https://app.harbor.my/api/v1/notes \
  -H "Authorization: Bearer $HARBOR_TOKEN"

There are two kinds of token, for two different jobs.

Personal access tokens

A personal access token (PAT) is a long-lived key that acts as you. Use one for your own scripts, a cron job, a CLI, or a one-off integration. Tokens start with hbp_ and are scoped to exactly the permissions you pick.

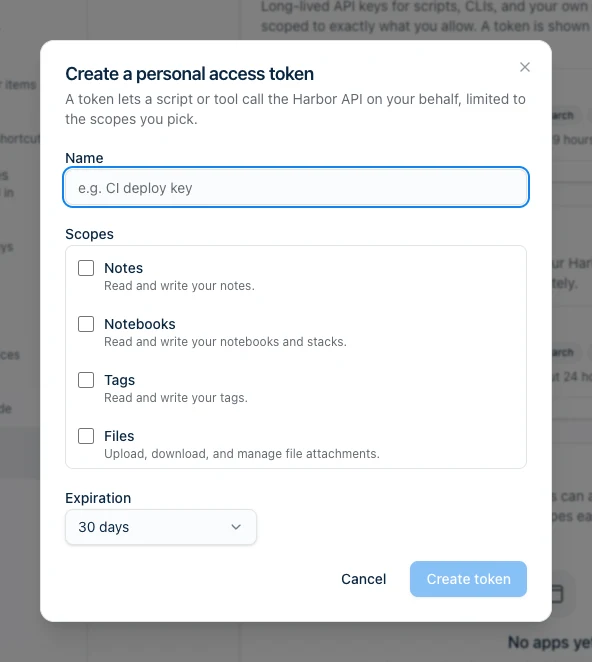

Create a token

1. Sign in to Harbor and open Settings → Developer.
2. Under Personal access tokens, click Create token.
3. Name it (e.g. “CI deploy key”), choose an expiration, and select the scopes it needs.
4. Click Create token and copy the value. It’s shown only once — store it in a secret manager or an environment variable, never in your code.

Use a token

Pass it as a bearer token on every request:

export HARBOR_TOKEN="hbp_your_token_here"

curl https://app.harbor.my/api/v1/notes \
  -H "Authorization: Bearer $HARBOR_TOKEN"

Revoke a token

Open Settings → Developer, find the token, and use its ⋯ menu to delete it. The token stops working immediately. Do this the moment a token might have leaked — then create a fresh one.

OAuth apps

An OAuth app lets other Harbor users authorize your integration to act on their behalf, limited to the scopes each user approves — the same pattern as “Sign in with…” buttons elsewhere. Build one when you’re shipping a product that connects to Harbor, not just scripting your own account.

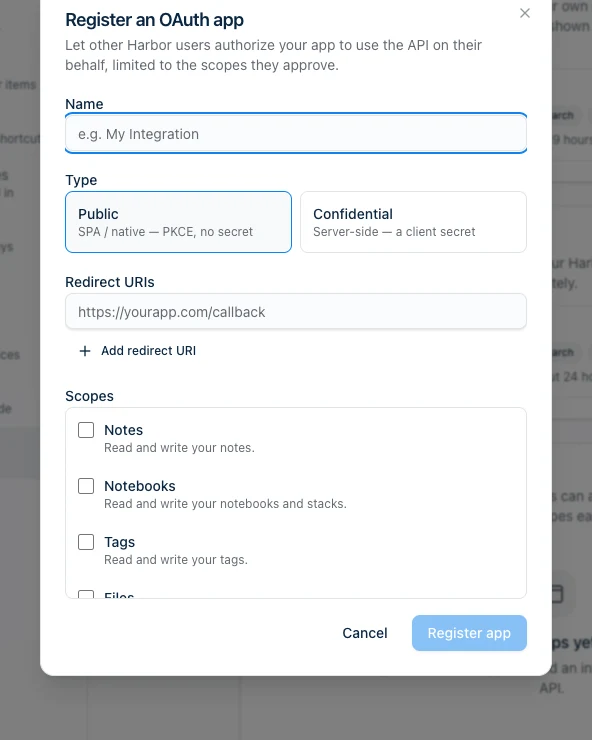

Register an app

In Settings → Developer → OAuth apps, click Register app:

• Name — what users see on the consent screen.
• Type — Public (a single-page or native app that can’t keep a secret, using PKCE) or Confidential (a server-side app that holds a client secret).
• Redirect URIs — where Harbor sends users back after they approve. Add one or more; the redirect on each request must match exactly.
• Scopes — the maximum permissions your app can request.

The authorization code flow

Harbor implements standard OAuth 2.0 Authorization Code, with PKCE for public clients. The shape of the flow:

1. Start the authorization request with your client_id, a redirect_uri that exactly matches one you registered, the scope you want, a random state, and a PKCE code_challenge (S256 — PKCE is required):

   GET https://app.harbor.my/api/v1/oauth/authorize
     ?response_type=code
     &client_id=YOUR_CLIENT_ID
     &redirect_uri=https://yourapp.com/callback
     &scope=notes+notebooks
     &state=RANDOM_STATE
     &code_challenge=BASE64URL_SHA256_OF_VERIFIER
     &code_challenge_method=S256


2. The user approves the requested scopes on Harbor’s hosted consent screen.

3. Harbor redirects back to your redirect_uri with a short-lived, single-use code (and your state, which you must verify).

4. Exchange the code for tokens (confidential clients send the client secret; public clients send the PKCE code_verifier):

   curl -X POST https://app.harbor.my/api/v1/oauth/token \
     -H "Content-Type: application/json" \
     -d '{
       "grant_type": "authorization_code",
       "code": "ac_the_code",
       "redirect_uri": "https://yourapp.com/callback",
       "client_id": "YOUR_CLIENT_ID",
       "code_verifier": "THE_PKCE_VERIFIER"
     }'


   You get back an at_ access token (1-hour lifetime) and an rt_ refresh token, which your app then uses exactly like a personal access token. Refresh tokens are single-use and rotate on every refresh.

Full request/response detail for every OAuth endpoint — authorize, token (all grant types), revoke, plus registering and managing apps and grants — is in the OAuth & tokens reference. The Harbor CLI is open source and implements this exact public-client PKCE handshake if you want a reference.

Scopes

Both token types are limited to scopes. Request the fewest you need — users trust apps that ask for less, and a leaked token can only do what its scopes allow.

A request that touches a resource outside its token’s scopes is rejected with 403 Forbidden. See Errors for the full error shape.

Keeping tokens safe

• Never commit tokens or put them in client-side code you ship. Use environment variables or a secret manager.
• Scope down. A token that only needs to read notes shouldn’t have files.
• Rotate and expire. Prefer an expiration for CI tokens; rotate on a schedule and whenever someone leaves.
• One token per integration, so you can revoke one without breaking the rest.

Next steps

• Conventions — pagination, timestamps, the response envelope
• Errors — status codes and error bodies
• API reference — every endpoint
